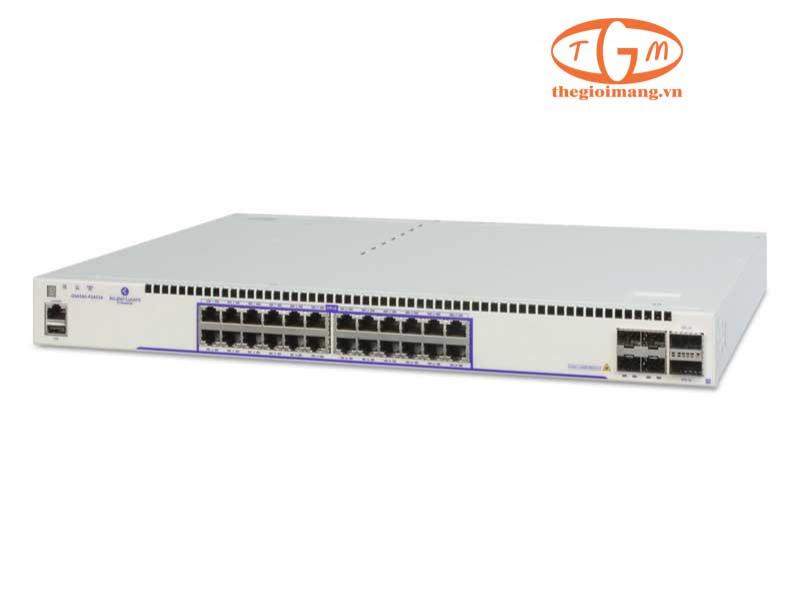

Name: Alcatel-Lucent OS6560-P24Z24 Switch L3 24x2.5G RJ45 PoE, 4x10G SFP+, 2x20G QSFP+
Brand: Switch Alcatel
SKU: OS6560-P24Z24
Availability: InStock
Rating: 5 (23 reviews)

Hỗ trợ trực tuyến

Hỗ trợ tư vấn

CCNP, MCSE

0909648899

Hỗ trợ kinh doanh

Mr. Quốc

0917684899

Ms. Vy

0906641689

Ms. Huyền

0917993131

Ms. Mỹ

0915793030

Hỗ trợ kỹ thuật

Mr. Hậu

0834452514

Mr. Lực

0913563710

Mô tả sản phẩm

Xem thêm

Thông số kỹ thuật

Model	OS6560-P24Z24
Gigabit PoE port count	• 24
Multi-Gigabit port count	• 24
1G/10G SFP+	• 4
20G QSFP+ stacking ports	• 2
MACSec capable ports	• 0
USB port	• 1
IEEE 1588v2 PTP support	• N/S
Console port	• 1
Primary slide-in PSU Slot	• 1
Backup slide-in PSU slot	• 1
Fans	• 2
File system flash	• 2 GB
RAM	• 2 GB
Max switching ASIC capacity	• 336 Gb/s
Switch Capacity with 4x10GE ports and 2x20GE stacking ports (all ports, full duplex)	• 280 Gb/s
Switch frame rate with 4x10GE ports and 2x20GE stacking ports @ 64-byte packet	• 208 Mpps
Stacking Capacity (each)	• 80 Gb/s
Stacking Capacity (total)	• 640Gb/s
System power Consumption	• 116 W
System heat Dissipation	• 396 (BTU/h)
Power consumption w/PoE	• 600 W
Heat Dissipation w/PoE	• 2047 (BTU/h)
Acoustics (dB) @27C*	• 37-54 (dBA)
MTBF (hours)	• 372k/352k
Height	• 4.4 cm
Width	• 44 cm
Depth	• 35 cm
Weight	• 4.58 kg
Operating Temperature	• 0° C to 45° C
Storage temperature	• -40° C to 85° C
Humidity (operating)	• 5% to 95% non-condensing
